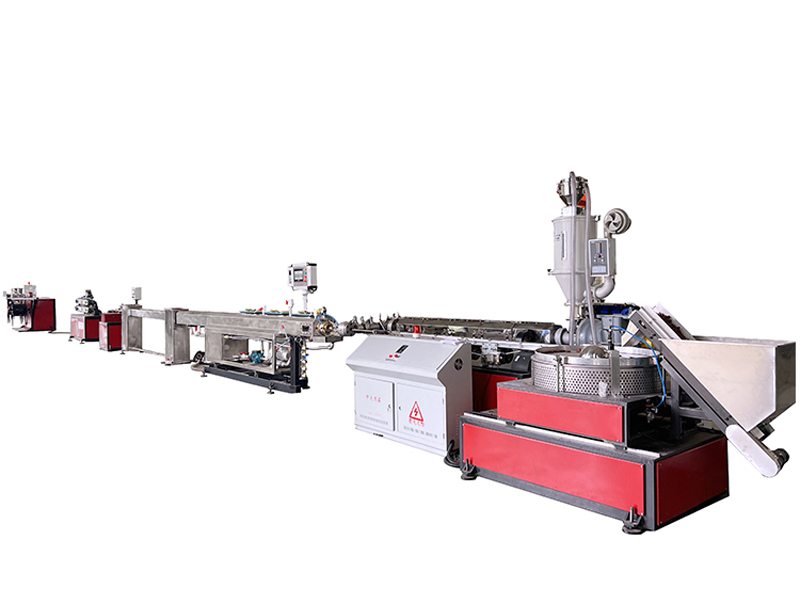

內鑲圓柱滴頭滴灌管生產線
一:Production line component (生產線組成)
No. | Device | Quantity |
1 | Dripper transferring systerm 滴頭輸入系統 | 1 set |
2 | Automatic material feeding and drying system | 1 set |
3 | SJ-75×30/1 single screw extruder 75*30單螺桿擠出機 | 1 pcs |
4 | Mold(the durable filter is included) 模具(包括換網) | 1 set |
5 | Vacuum water tank 真空定徑箱 | 1 set |
6 | Cooling water tank 冷卻水箱 | 1 set |
7 | Tractor 牽引機 | 1 set |
8 | Punching system 打孔系統 | 1 set |
9 | Winding machine 卷取機 | 1 set |
10 | Electric cabinet 電器柜 | 2 set |

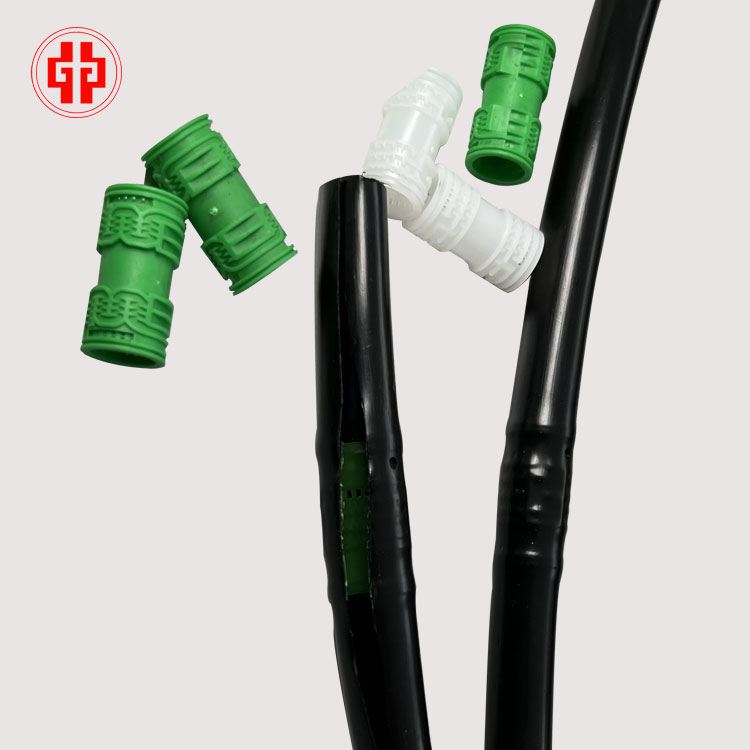

內鑲圓柱滴灌管
二:主要技術參數(Main technical parameters)
Production speed 生產速度 | 0-60m/min |
Power for dripper transfer systerm 滴頭輸送功率 | 750w |
Speed for dripper transfer systerm 滴頭輸送速度 | <400個/min |
Punching speed 打孔速度 | <400個/min |
Water dripping space 滴水間距 | 10cm-50cm(adjustable) |
Water dripping volume 滴水量 | 2.5-4.0L/H(adjustable) |
Specification for tape 制品規格 | ?16mm,20mm |
Thickness of the tape 制品厚度 | 0.5-1.0mm(adjustable) |
Materials 原料配方 | LDPE,HDPE |
Overall dimension 外形尺寸 | 30m*2.5m*3m |
Total weight 總重量 | 6000kg |
